This equipment is a combination of a mechanical bin activator with a flexible screw conveyor. Whatever the silo capacity the silo discharge unit ZDM guarantees flow control and accurate feeding of your powder product such as quick lime, hydrated lime, powdered activated carbon, etc.

Mechanical Bin Activator

Quicklime unloader with screw feeder

Quicklime unloader with screw feeder

In order to increase the accuracy of the volumetric feeder, the equipment can be equipped with an electronical device to become a loss in weight gravimetric feeder.
The arch breaker or silo unloader is fitted with a slide gate valve assembly and is totally mechanical. The product is always maintained within the feeder which guarantees feed accuracy independently of the load in the silo. The mechanical bin activator can be mounted on new or existing silos. The conveyor ensures that the product is transferred to the process application. One silo can be fitted with several screw feeders either flexible or rigid.

Various Sodimate equipment can be fitted at the outlet of the screw feeder, such as Conveying screw DMR, Injector ID, Mixer MBV, Mixing tank…

Range of output

Type of dosing screw

30

40

70

80

100

120

Range of output

50 l/h max

440 l/h max

1400 l/h max

2300 l/h max

3600 l/h max

12000 l/h max

Dosing screw external Ø

40 mm

50 mm

76 mm

89 mm

108 mm

140 mm

Bin Activator for lime silo
Bin Activator for lime silo
Activated Carbon Silo fitted with Bin activator
Activated Carbon Silo fitted with Bin activator
Quick lime Mechanical Bin activator with dosing screw
Quick lime Mechanical Bin activator with dosing screw
Stainless Steel Bin activator for Sodium Bicarbonate
Stainless Steel Bin activator for Sodium Bicarbonate

By installing a silo arch breaker ZCD 800, it is then possible to install up to 4 screw feeders with different outputs. This is an effective solution for gas treatment systems where several incineration lines need to be fed.

Bin Activator + dosing Screw feeding into pneumatic Conveyor
Bin Activator + dosing Screw feeding into pneumatic Conveyor
Powder Activated Carbon Bin Activator + dosing screw
Powder Activated Carbon Bin Activator + dosing screw

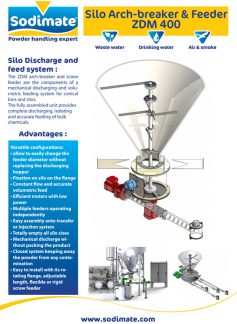

Silo Arch-Breaker
